Multiple Mouse Tracking

1 · At a glance

A local environment for reviewing and correcting the output of our in-house tracking model, not an automatic tracker.

This tool lets you review the results of our in-house developed mouse detection and tracking model against the source video, correct bounding-box geometry, repair identity spans, and check continuity with synchronized diagnostic plots. Everything runs in your browser and nothing is uploaded.

What it is not: a model-training interface, an automatic tracker, a pose-estimation system, or a calibrated behavioral-analysis package. Its plots are quality-control aids based mainly on bounding-box centers.

The review workflow

1. Prepare a copied or version-controlled folder of paired JSON + MP4 files.
2. Open the folder, choose a suspicious clip, and confirm JSON autosave is enabled.
3. Inspect video, traces, and identity continuity frame by frame.
4. Correct bounding-box geometry with exact hard anchors; use smart propagation only where it behaves safely.
5. Repair identity spans on the timeline and inspect all affected frames.
6. Use the View diagnostics for QC, wait for the saved status, then reopen and verify.

2 · Before you begin

Protect the original tracking output before granting write access.

Open the tool in a current Chromium browser that supports writable folder access: Chrome or Edge. Click open folder and approve read/write access. The browser reads files directly in the chosen folder; it does not scan nested subfolders.

• Keep each clip's JSON and MP4 in the same top-level folder with exactly the same basename.
• The MP4 supplies the review video; JSON can load without it, but the video area will be blank.
• Playback is muted by design.
• A manifest.json is optional but recommended for corpus, suspicion, and clip metadata.

Recommended layout & JSON format

Each frame is a list of detections. The first five values are ID, x, y, width, height; any trailing values are carried forward for surviving rows.

Without a manifest, the tool treats most top-level .json files as clips, so keep unrelated files (e.g. *.stats.json) out of the working folder, or provide a curated manifest.

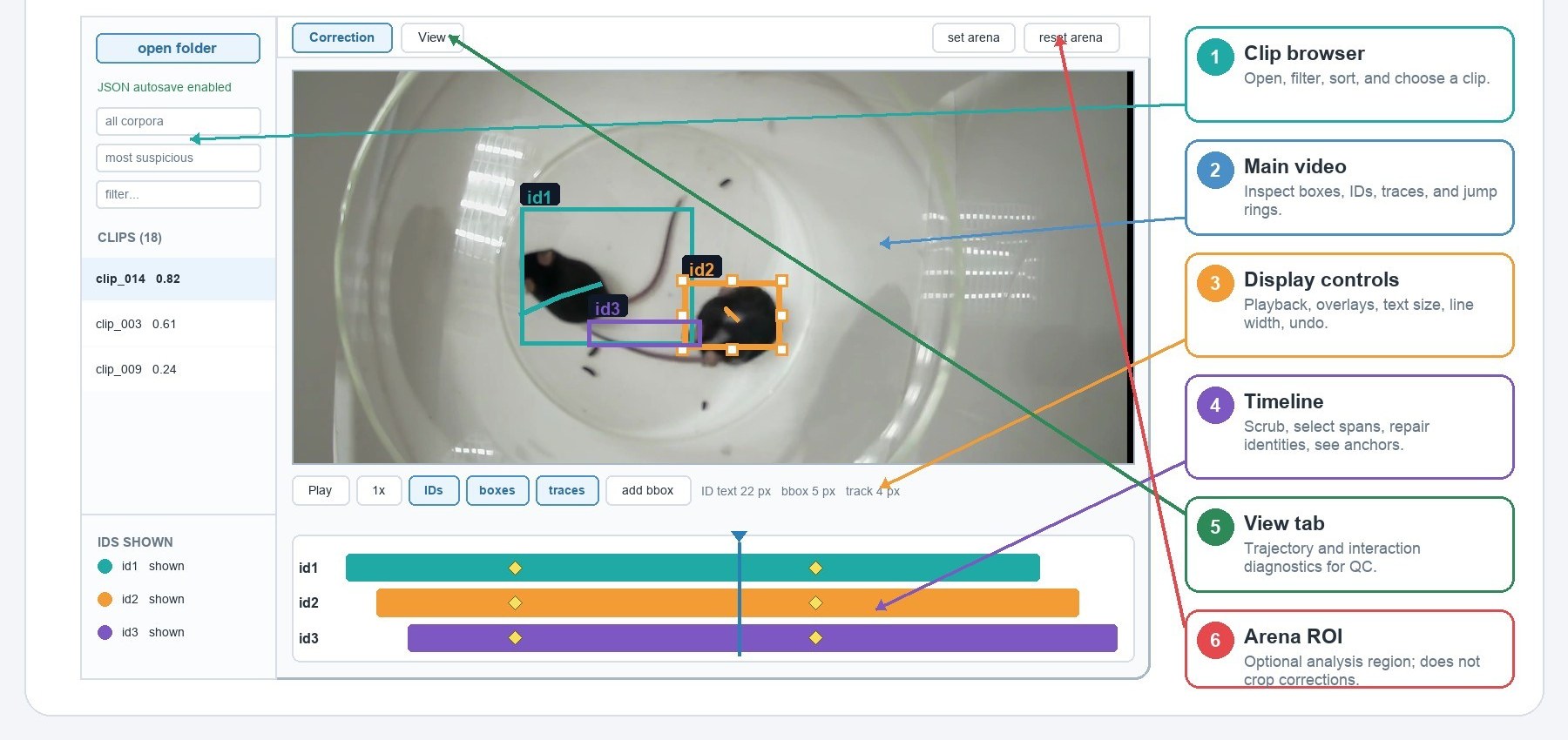

3 · Know the workspace

The Correction tab is for editing; the View tab is for synchronized QC diagnostics.

A five-minute practice pass

1. Make a disposable copy of one paired JSON/MP4 clip and open its folder.
2. Confirm JSON autosave is enabled, select the clip, and use Space plus the arrow keys to navigate.
3. Click a box and make a small move, then confirm a yellow diamond appears in the timeline.
4. Press Cmd/Ctrl+Z and confirm the edit is removed and autosaved.
5. Wait for the saved message, reopen the folder, and verify the correction is reconstructed.

4 · Navigate & tune the display

Navigation and styling controls never change annotation data.

Playback & frame stepping

• Play/Pause: the button or Space. At the end, Play restarts from frame 1.
• Speed: 0.5×, 1×, 2×, or 4×. Any edit or arrow-key step pauses playback.
• Tap ←/→ for one frame; hold for smooth stepping, release to settle on a precise frame.
• Click or drag blank timeline space to scrub without changing annotations.

Zoom & pan

IDs, boxes, and traces toggle independently. ID text is measured in screen pixels (8–72 px) and persists in browser storage; box lines range 2–14 px and traces 1–14 px. The selected box shows a dashed outline with eight handles, and a manual hard anchor is marked by a diamond by the ID label and a yellow diamond in the timeline.

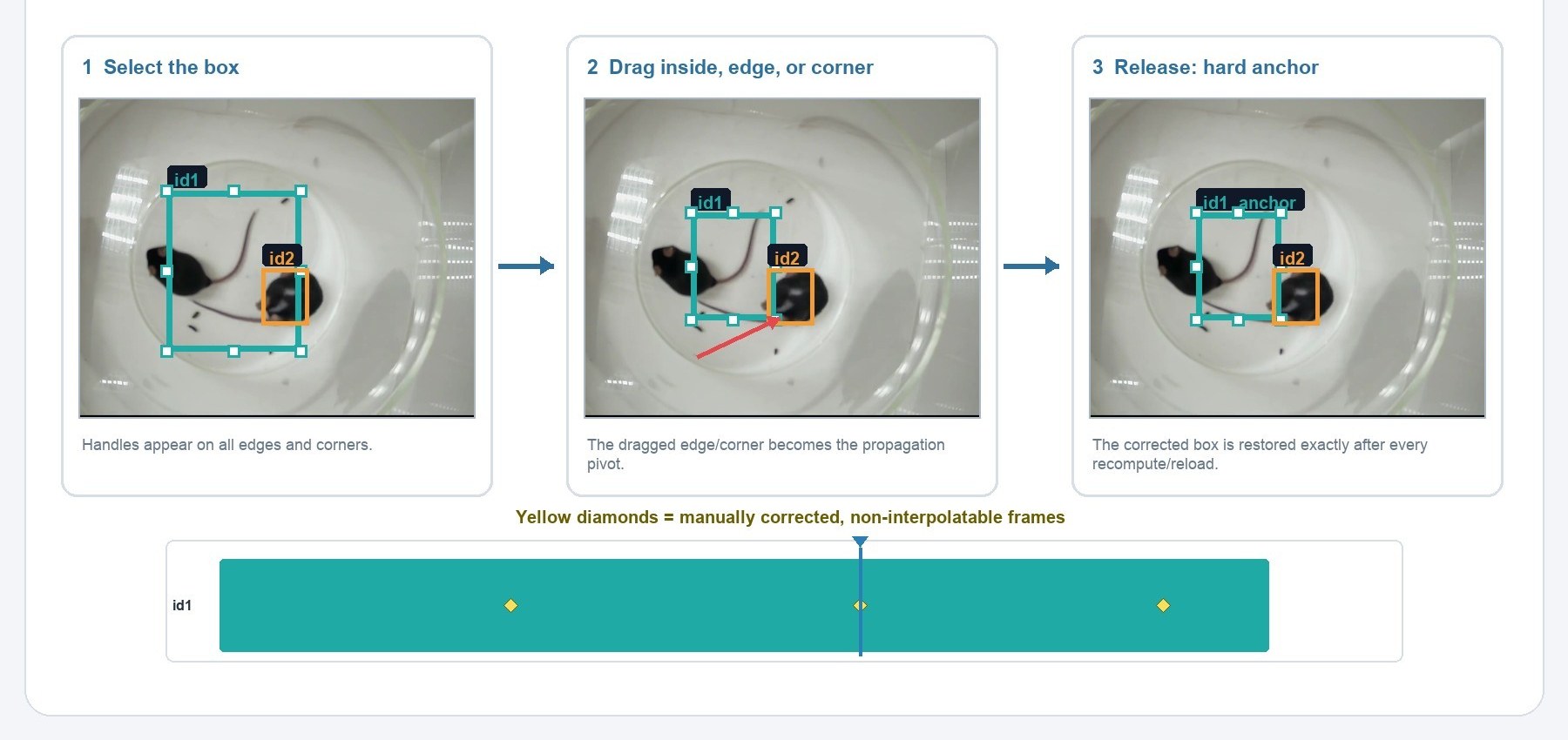

5 · Correct bounding boxes

A box drag edits the current frame, even though clicking selects the full contiguous timeline block.

A drag must move a few screen pixels before it commits. Boxes are clamped to the video with a minimum source size of 4×4 px. When boxes overlap, the selected one is favored; otherwise the smallest hit box wins.

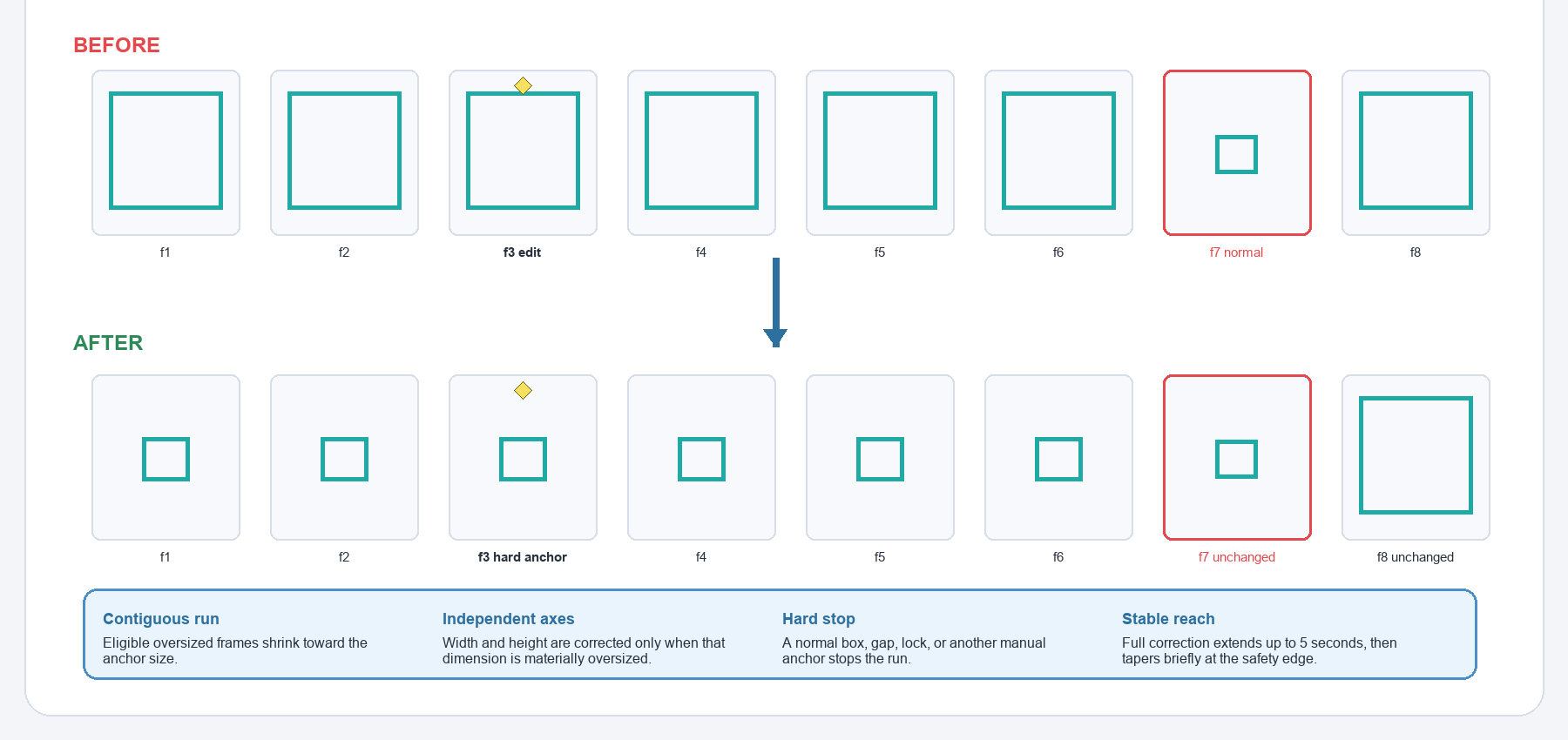

6 · Smartly shrink a continuous oversized run

Use one representative correction to reduce adjacent over-large predictions without touching normal boxes.

When you reduce a box dimension by roughly 2× or more (without substantially enlarging the other), the tool treats it as a likely correction of an oversized run and shrinks contiguous over-large neighbors toward your anchor.

• Only contiguous frames that are still clearly oversized are eligible; an already-small dimension is never enlarged.
• Normal/small boxes are left pixel-identical and stop propagation. A missing-ID frame, structural lock, or another anchor is also a hard barrier.
• Correction extends up to ~5 s on either side, with a short smooth safety-edge transition.

Recommended pattern

1. Pause on a clear frame near the middle of the oversized run.
2. Resize tightly around the animal using the edge or corner that should stay fixed.
3. Scrub backward and forward through every affected frame.
4. Confirm normal boxes at the run boundary are unchanged.
5. Add another anchor when the true size, orientation, or motion changes. Don't force one anchor across a different situation.

If a neighbor should not change: undo immediately, correct that neighbor manually, and use its anchor as a hard barrier for the run.

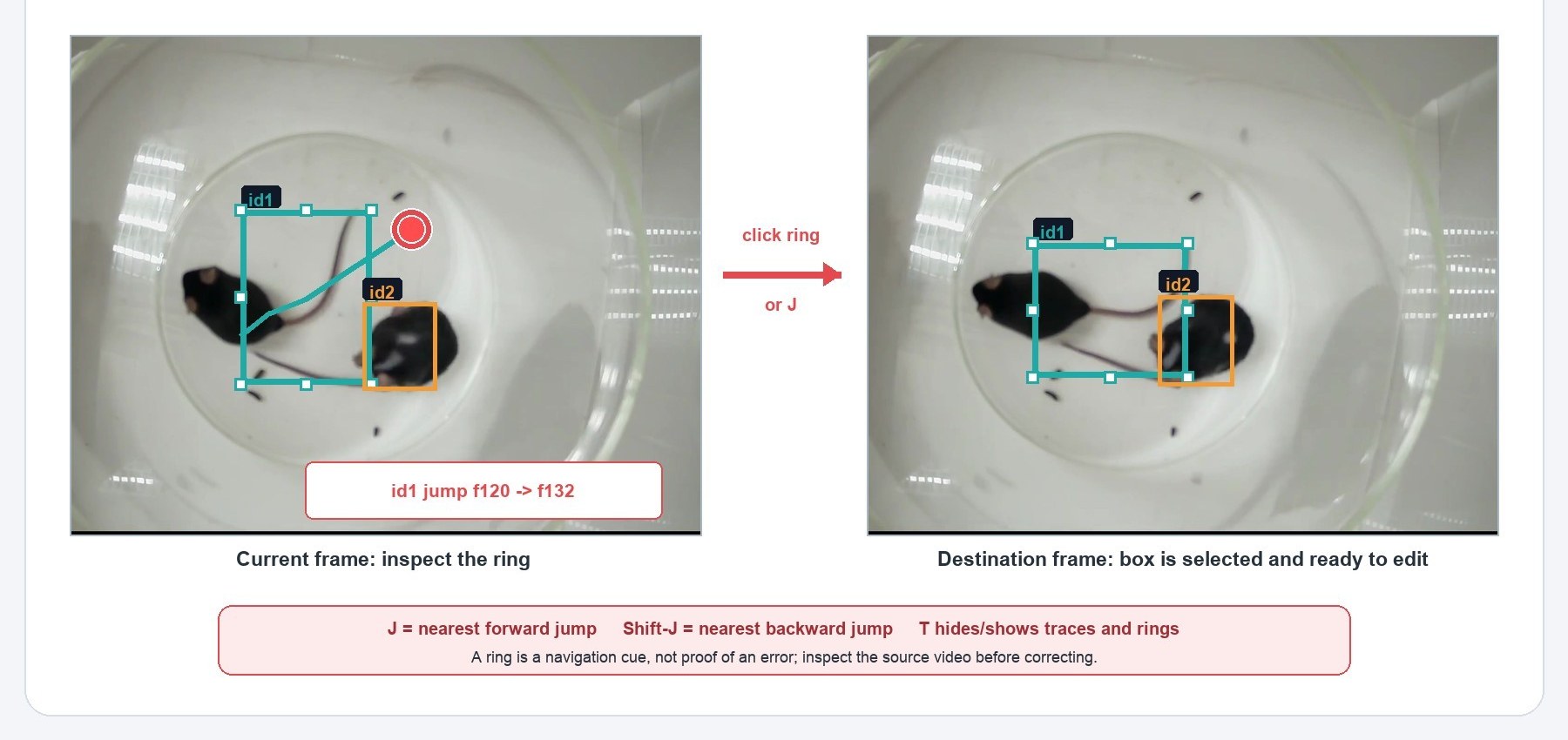

7 · Reach suspicious frames with red jump rings

A jump ring is a navigation cue, not proof that the tracking is wrong.

With traces enabled, the tool flags when an ID's center jumps by more than roughly 7.5% of the larger video dimension between consecutive detections, drawing the destination as a red ring.

• Hover a ring to enlarge it and read the HUD's ID and source/destination frames.
• Click to jump to the destination, select that ID's block, and hand off to box editing.
• Shift-click to append that block to the current selection.
• J = nearest forward jump · Shift+J = nearest backward jump · T toggles traces (and rings).

Inspect first: fast real motion, a long detection gap, or a true entry/exit can all create a ring. Correct only after checking the video and neighboring frames.

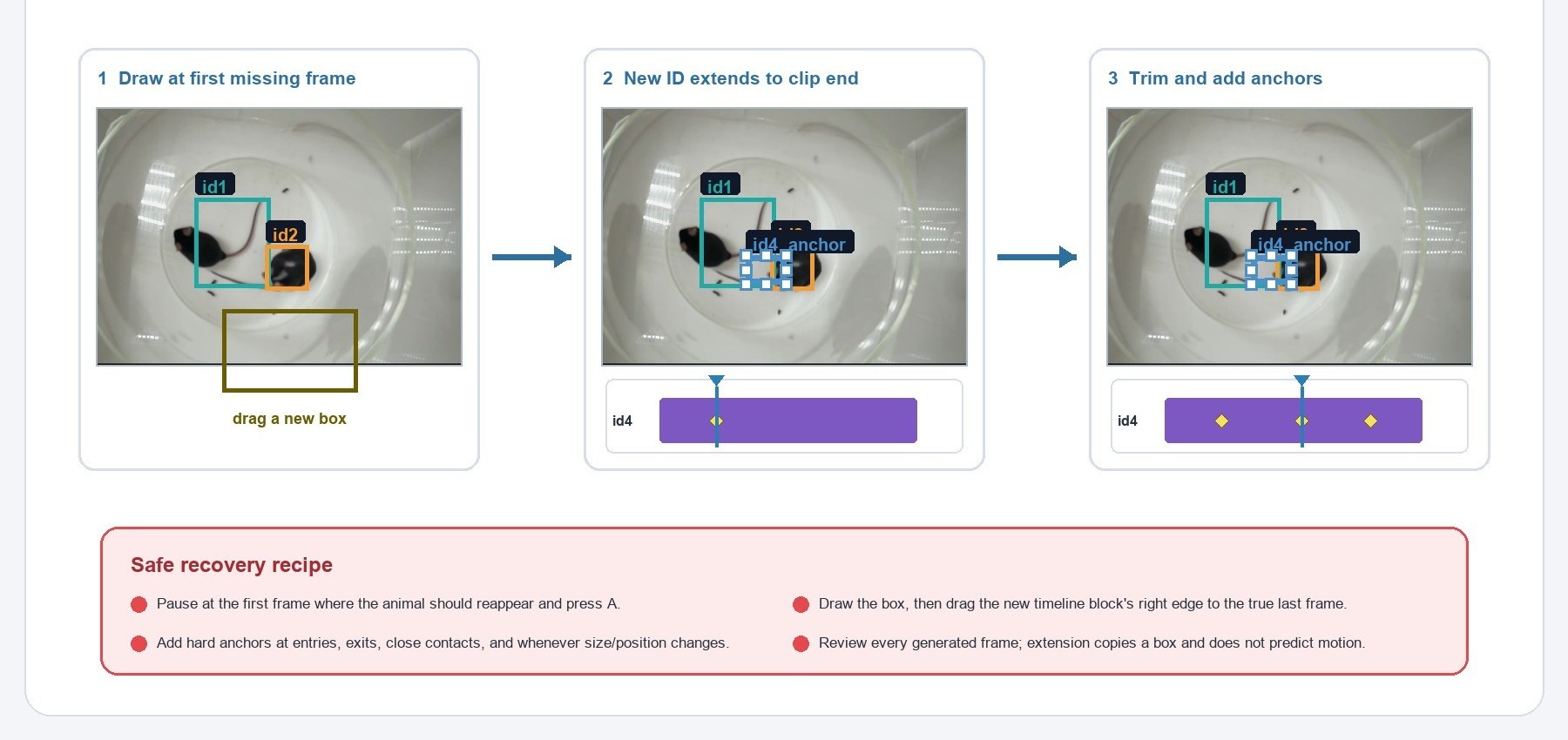

8 · Recover a missing detection with Add bbox

Add bbox creates a new track to the clip end, so trim it immediately when recovering only a short gap.

1. Go to the first frame where the missing animal should reappear.
2. Click add bbox or press A, then drag a rectangle (smaller than ~6×6 px is rejected).
3. The tool assigns the next unused ID and copies the initial rectangle from the current frame to the clip end.
4. Drag the new timeline block's right edge inward to its true last frame.
5. Add geometry anchors across the recovered span and inspect every entry, exit, and close contact.
6. Relabel or merge the recovered block only after its time span is correct.

No motion prediction: Add bbox and outward extension copy a fixed boundary box, so they do not track the animal automatically.

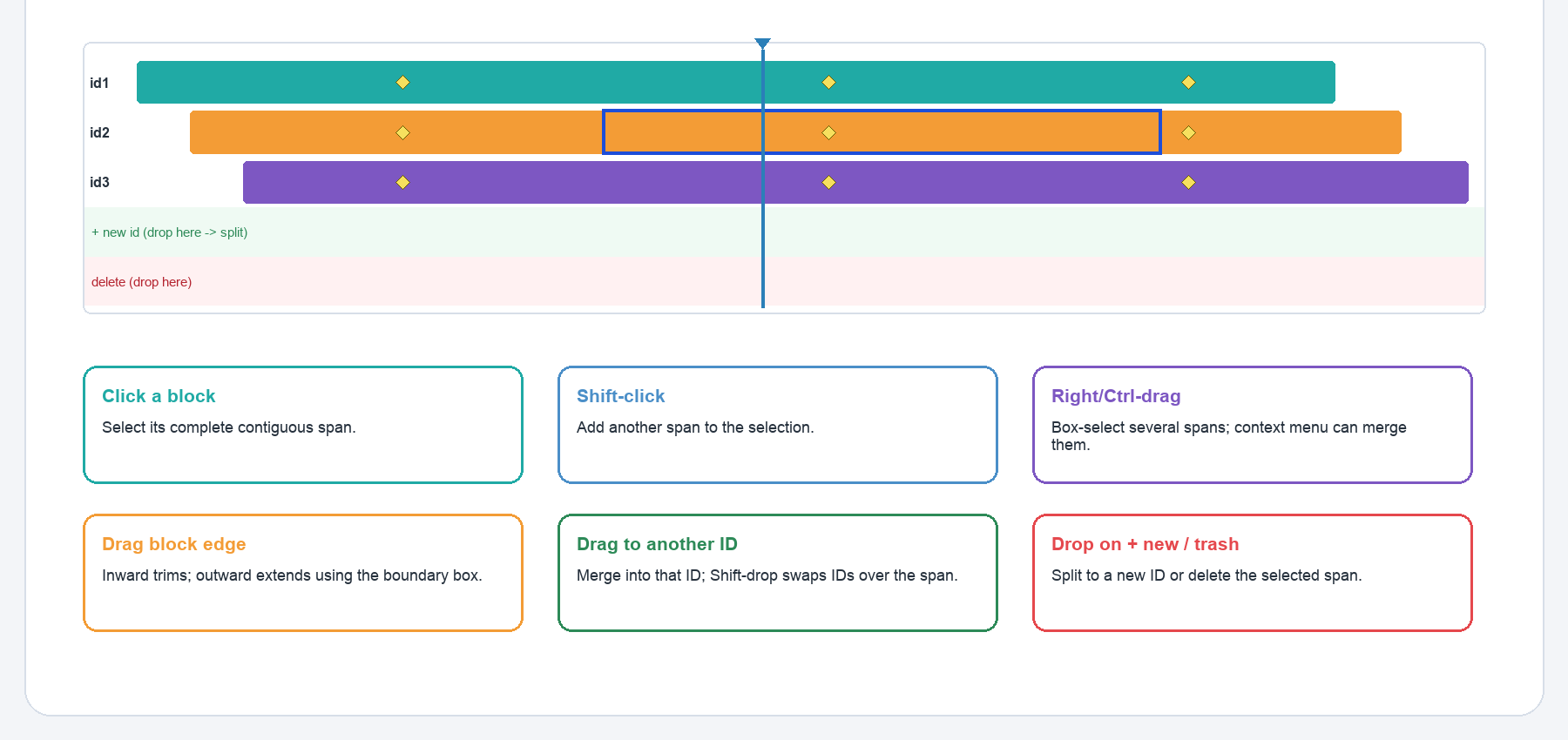

9 · Timeline identity repair

The timeline operates on contiguous identity blocks, not arbitrary interior lassos.

Each colored row is one ID; a solid segment is a contiguous presence block. Yellow diamonds mark manual anchors and the blue line is the current frame. Clicking a box or block selects that ID's complete contiguous block, so Delete may remove many frames even though a box drag edits only one.

• Click a block to select its span; Shift-click to append more.
• Right/Ctrl-click a block to select and open the context menu; Right/Ctrl-drag across rows for a rectangular group selection.

Structural operations

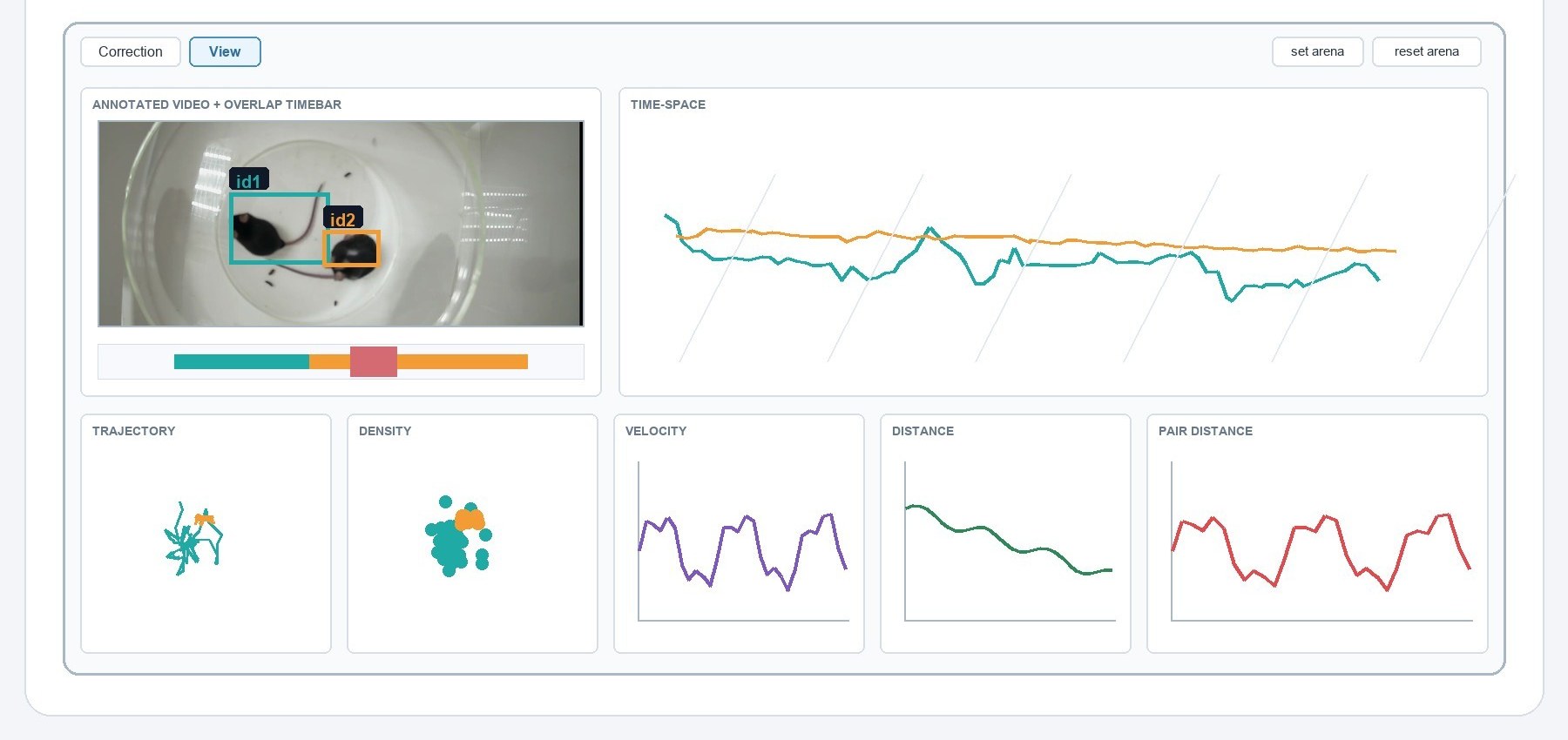

10 · Use View & define an arena

View summarizes the same corrected annotations without creating a second copy.

Click the Annotated Video to select the nearest ID (Shift-click appends); drag the timebar or metric plots to scrub; drag Time Space to rotate, wheel to zoom, double-click to reset. IDs shown controls which tracks enter the plots.

Arena ROI: click set arena then drag a rectangle on the Annotated Video. It normalizes the spatial maps and is saved as plot_roi in the JSON; reset arena restores the full frame. It does not crop box editing or convert pixels to physical units.

11 · Autosave, undo & recovery

The durable record is the successfully written JSON, not the browser cache.

There is no separate Save, Export, Save As, or Import. Edits are queued for JSON writeback automatically; switching clips or folders flushes pending saves. Before closing the page, wait for a saved status message. Corrected frames are written to frames, the arena to plot_roi, and _mmt_bbox_editor stores hard anchors, immutable source bases, propagation mode, and structural locks so the result can be reconstructed.

• Undo stores up to 50 box or structural operations and is itself autosaved. There is no Redo, and history clears when another clip is opened.
• Visibility, color, label size, line width, and zoom are not annotation-Undo operations.

If a write fails

1. Stop editing and read the exact save-status message.
2. Keep the page open while restoring folder permission or removing a file lock.
3. Manual box anchors may have a browser-cache fallback; structural edits do not.
4. Compare with your external backup. Browser cache is an emergency aid, not a backup.
5. After recovery, reopen the folder and verify the saved clip before continuing.

12 · End-of-clip QC checklist

Finish every clip with a systematic pass; don't rely on a single corrected frame.

• The JSON save status confirms the most recent changes were written.
• Every visible animal has the correct ID through entries, exits, overlaps, and close contacts.
• No selected box is shifted, too large, too small, or clipped by the video boundary.
• Every manual anchor is intentional and exact; none placed on an ambiguous frame.
• Smart-propagated runs were inspected frame by frame, including both normal-box barriers.
• Red jump rings were reviewed or explained by real motion, gaps, or entry/exit events.
• Added or extended tracks were trimmed and given enough geometry anchors.
• Timeline merges, swaps, splits, trims, extensions, and deletions were checked at both boundaries.
• Trajectory and velocity views contain no unexplained discontinuity or spike.
• Overlap and pair-distance moments agree with the annotated video.
• Arena ROI is correct, or reset arena restored the full frame.
• The folder was reopened and a sample of corrected frames verified after save.

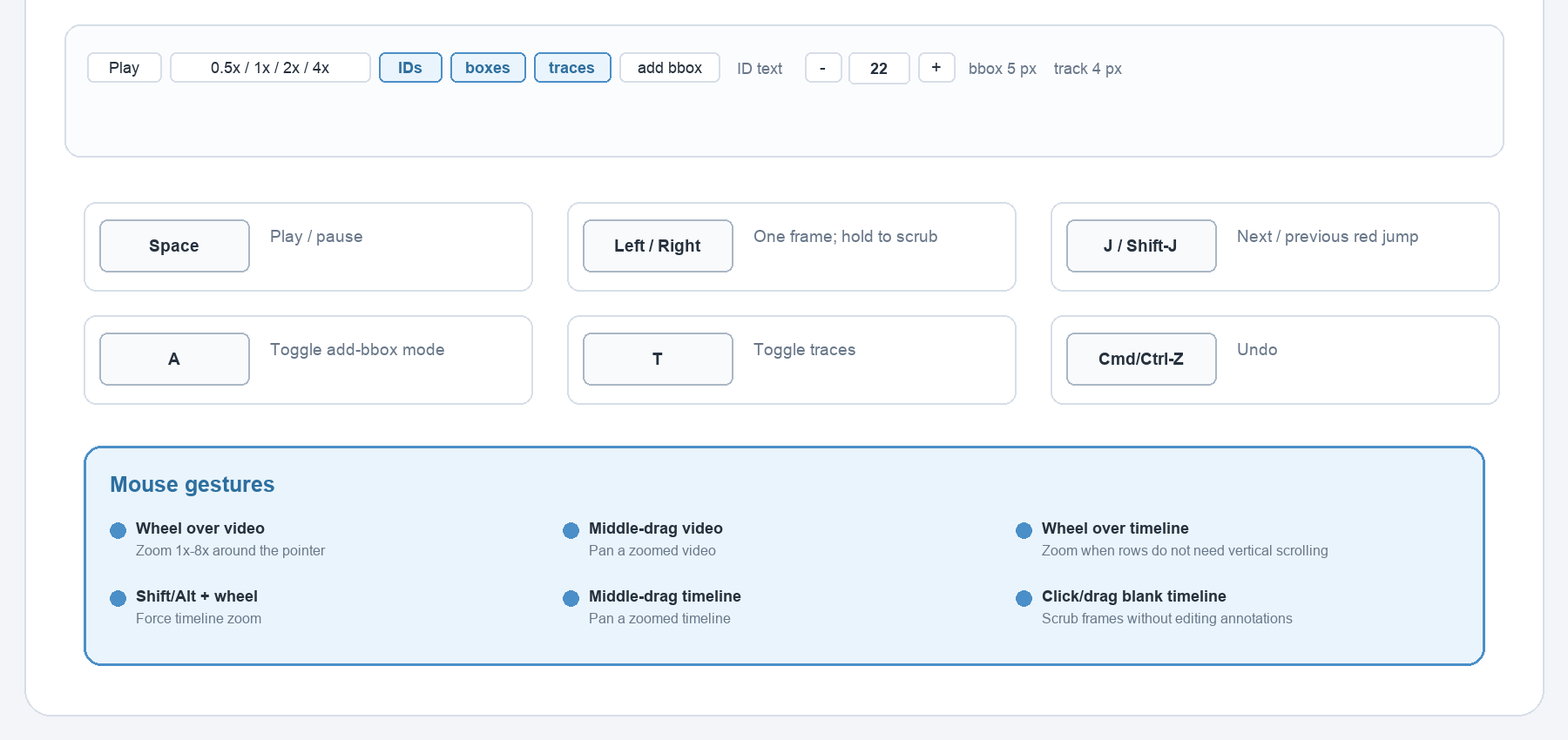

13 · Keyboard & mouse reference

14 · Troubleshooting & known limits

Known limits: no Redo, Save As, export copy, arbitrary interior lasso, or automatic backup. Only the selected JSON is rewritten (masks, MOT files, and model outputs are not synchronized). Plots use box centers and pixels, not calibrated distance or pose landmarks, and long clips are sampled for View, so the plots supplement but never replace frame-by-frame validation.
